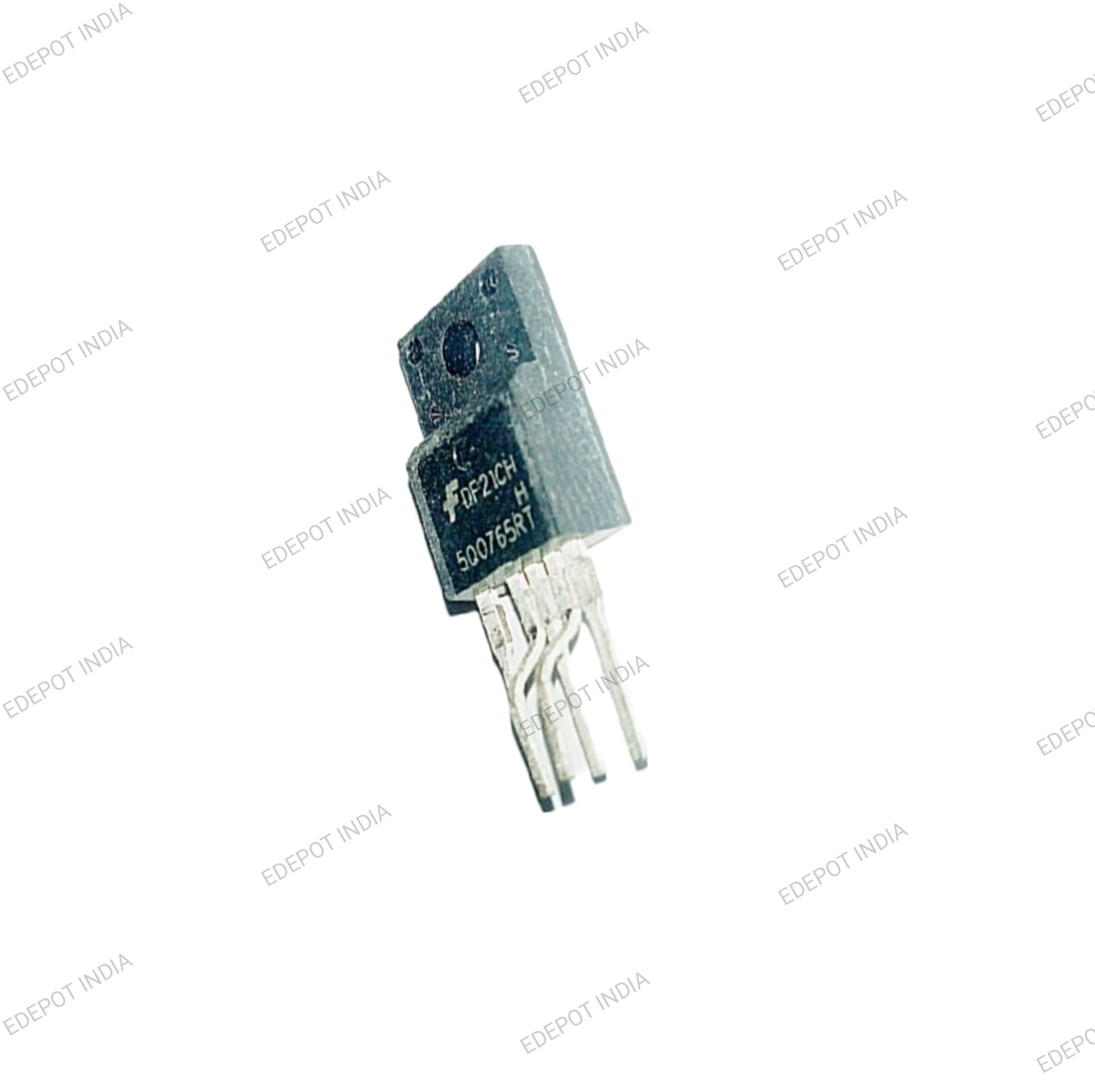

5Q0765RT Power STR IC – Compact 5-Pin Switching Regulator for TVs
The 5Q0765RT is a highly popular Power STR IC used extensively in the power supplies of CRT and LED televisions. Featuring a compact 5-pin layout, this IC integrates a high-voltage SenseFET with a PWM controller, offering an efficient and reliable solution for SMPS repairs. It is celebrated for its ‘Soft-Start’ capability and low energy consumption in standby mode. With built-in protection against over-voltage and overheating, the 5Q0765RT ensures your display equipment returns to stable and safe operation. It is an essential component for any professional electronics repair kit.
Availability:
In stock
₹120.00 ₹290.00
In stock
Product Overview
The 5Q0765RT (KA5Q0765RT) is an industry-standard offline switching regulator. In the world of TV repair, this is a ‘must-have’ part, as it is found in countless domestic and international TV chassis. It is designed to drive the main transformer, providing stable DC rails for the rest of the circuit. Its high integration and safety features make it a durable and predictable part for all types of PSU maintenance.
Key Features
- Integrated SenseFET: High-efficiency switching for lower heat generation.
- 5-Pin TO-220F-5 Package: Compact and easy to install.
- Soft-Start Logic: Reduces electrical stress on capacitors during power-up.
- Low Standby Power: Meets modern eco-friendly energy standards.
- Advanced Safety: Thermal shutdown and pulse-by-pulse current limiting.
Benefits
Replacing a failed regulator with the 5Q0765RT allows for a quick and reliable restoration of dead power supplies. It offers a professional, factory-standard solution that is much safer than using universal ‘three-wire’ modules. Its high durability ensures that once fixed, the TV or monitor will remain operational for the long term. It is a cost-effective way to salvage high-quality display units.
Technical Specifications
- Model: 5Q0765RT / KA5Q0765RT
- Package: TO-220F-5 (Molded)
- Max Drain-Source Voltage: 650V
- Function: Offline PWM Switching Regulator
Applications
Primary regulator for CRT TVs, LED TVs, monitors, and various AC/DC adapters.
Package Contents
1 x 5Q0765RT Power STR IC.
Why Buy This Product?
EDEPOT INDIA provides genuine 5Q series ICs that are tested for voltage endurance. This is the reliable choice for both technicians and DIY repairers across India.
Frequently Asked Questions
Q: Can I use this for an LED TV power supply?
A: Yes, many modern LED TV power boards use the 5Q0765RT as the main primary switcher.
Q: Is the tab insulated?
A: Yes, the TO-220F package is fully molded in plastic, meaning the tab is electrically insulated from the pins.
