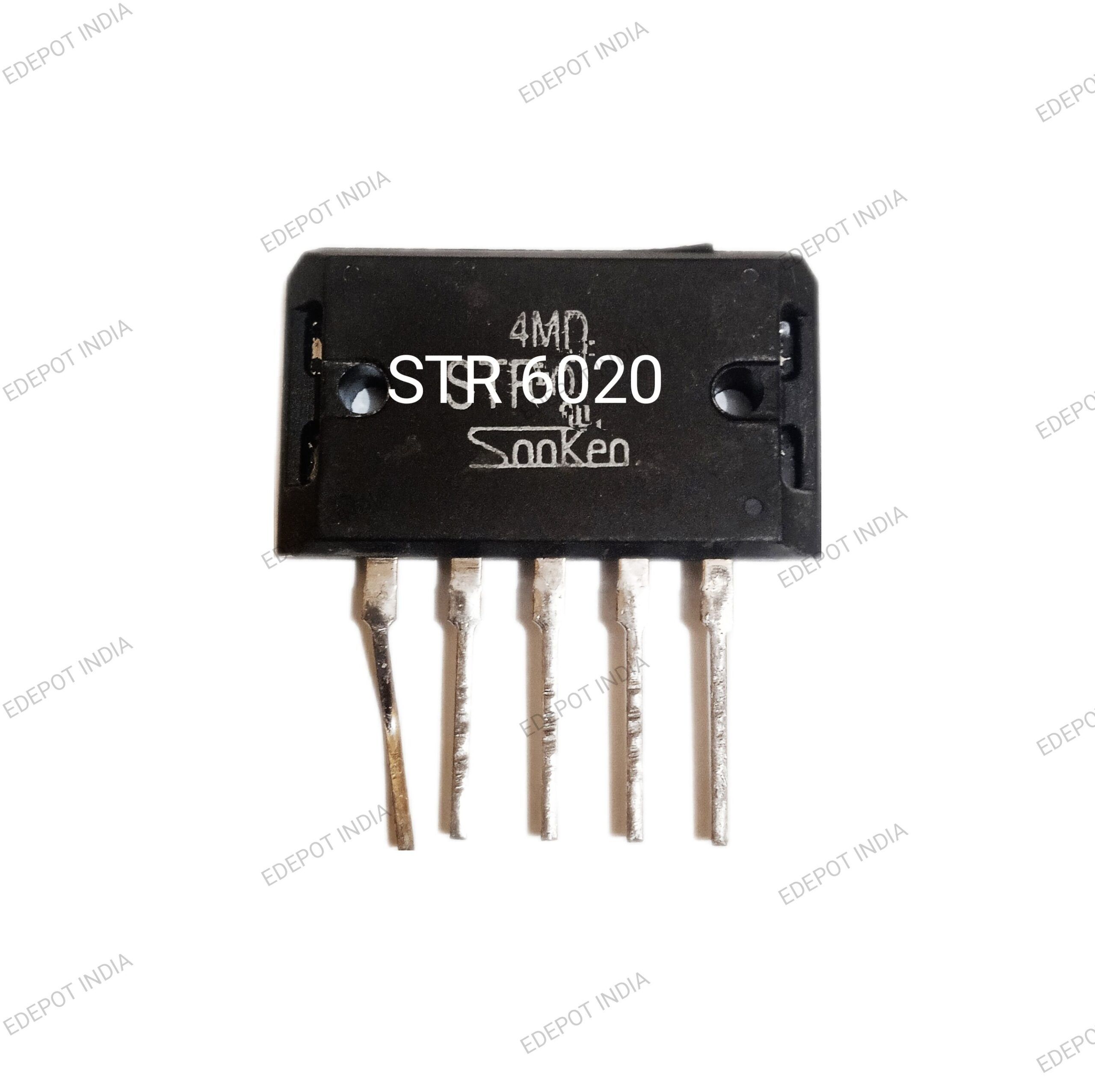

STR6020 Power Regulator IC – 5-Pin Offline Switching Module
The STR6020 is a robust 5-pin offline switching regulator IC designed for reliable performance in power supply units. Integrating a high-voltage SenseFET and a PWM controller, it simplifies the design of SMPS for televisions, monitors, and adapters. The 5-pin layout is standard for many repair chassis, making it an easy drop-in replacement for failed regulators. With built-in surge protection and thermal stability, the STR6020 ensures your equipment operates efficiently without overheating. Restore your power board to original specifications with this high-quality STR module.
Availability:
In stock
₹150.00 ₹250.00
In stock
Product Overview
The STR6020 is part of the iconic STR-6xxx family of regulators, known for their extreme reliability in consumer electronics. This module handles the high-voltage switching on the primary side of the power supply, ensuring that the secondary side receives clean and stable DC voltage. It is engineered for durability, capable of withstanding the voltage spikes often found in residential power grids.
Key Features
- 5-Pin ZIP Package: Standard configuration for easy PCB mounting.
- Integrated SenseFET: Minimizes external component needs for sensing current.
- Built-in Soft Start: Reduces electrical stress during initial power-up.
- Thermal Shutdown: Protects the IC from damage during over-current events.
- Stable Switching: Maintains accurate frequencies for noise reduction.
Benefits
Replacing a dead regulator with the STR6020 allows you to salvage expensive electronic equipment for a fraction of the cost of a new motherboard. Its high level of integration means fewer solder points and a lower chance of future failures. Technicians value the STR6020 for its predictable performance and high tolerance for heat.
Technical Specifications
- Model: STR6020 / STR-6020
- Pins: 5 (Standard ZIP/TO-220 Style)
- Type: Pulse Width Modulation (PWM) Controller
- Output Power: Suitable for mid-range display devices.
Applications
SMPS for TVs, Computer Monitors, and high-quality AC/DC chargers.
Package Contents
1 x STR6020 Power Regulator IC.
Why Buy This Product?
EDEPOT INDIA provides 100% genuine semiconductor parts. Our STR6020 ICs are checked for quality to ensure consistent performance in high-voltage environments.
Frequently Asked Questions
Q: My TV is stuck in standby; could this be the problem?
A: Yes, if the main power supply isn’t oscillating to provide full power, a faulty STR IC is a primary suspect.
Q: Does this work for 110V and 220V?
A: Yes, the STR6020 is designed to operate on universal AC input ranges.
